There is a technical center of province level, EPG academician working station, experiment station for EPG post doctors, and national 863 program set up in EPG group. With these platforms and strong technical ability, the more than 400 technicians have developed all variety of special high precise and high strength products, conducted mold programs for key components in the car and national industry revitalizing program, resulting more than 5000 developed over, among which 33 items are autonomous patent technology with 4 patent approved .
Overview
Quick Details
- Applicable Industries:
-
Manufacturing Plant
- Product name:
-
WPA series worm speed reductor
- Ratio:
-
10~60
- Input speed:
-
750-1500rpm
- Output speed:
-
14-280rpm
- Certificate:
-
ISO 9001
- Output torque:
-
1.8-2371N.M
- Input power:
-
0.4~34kw
When drive systems with high precision, reliability and extensive functionality are required to fit in small spaces, EPG supplies the necessary technology – either as standard solutions or individualized designs.
- Warranty:
-
1~2 Years
- Bearing:
-
NSK Bearing
- Mounting Position:
-
Foot Mounted. Flange Mounted
Packaging & Delivery
-
Lead Time
: -
Quantity(Bags) 1 – 3 4 – 5 >5 Est. Time(days) 5 10 To be negotiated
Online Customization
Product Description

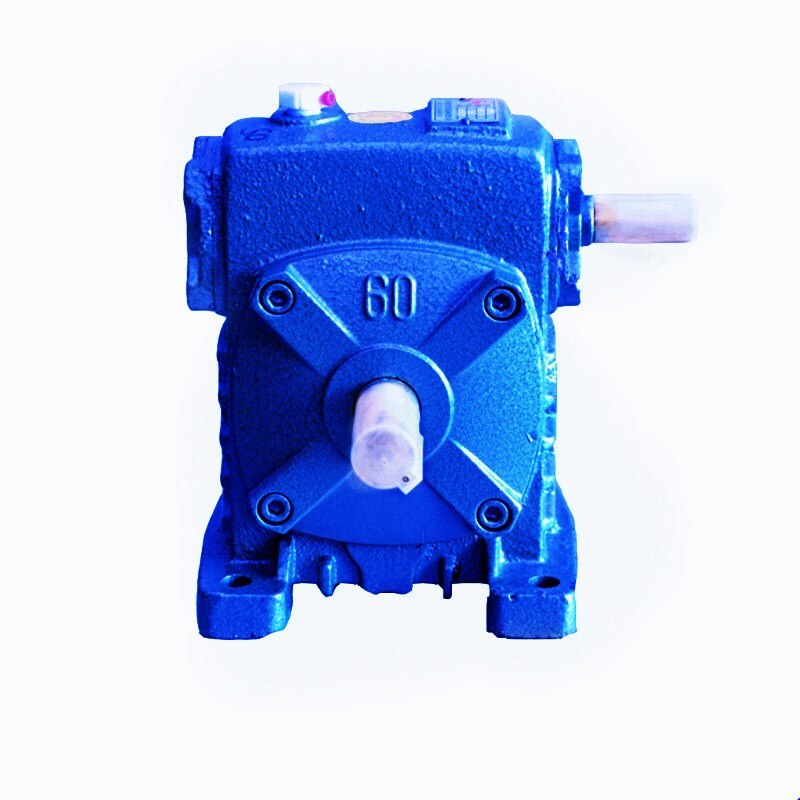

WP SERIES WORM GEAR SPEED REDUCER
WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.
WP SERIES WORM GEAR SPEED REDUCER FEATURES:
●Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment.
●Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements.
●The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature.
●Higher requirements for lubrication and cooling.
●Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard parts are used.
Details Images
WP SERIES WORM GEAR SPEED REDUCER
wp series structure drawing
HIGH QUALITY OUTPUT SHAFT
New standard axle, multi-precision machining, through rigorous dynamic and static balance test, to ensure low noise and smooth operation of reducer.
HIGH QUALITY SHELL MATERIAL
The box body is made of HT200 material,which is cleaned by professional screening and washing equipment to ensure that the inner cavity of the box body is cleaner without iron filings.
PRECISION BEVEL GEAR
20CrMn Ti material – low carbon alloy steel
Imported gear grinding machine processing, high hardness, stable performance.
Vacuum furnace carburizing heat treatment, carburizing layer uniform.
WP SERIES WORM GEAR SPEED REDUCER MOUNTING DIMENSIONS OUTPUT SHAFT DIMENSIONS AND OVERVIEW DIMENSIONS
WPA SERIES MOUNTING POSITION
|
Speed Ratio |
1/10 |
1/15 |
1/20 |
1/25 |
1/30 |
1/40 |
1/50 |
1/60 |
|
Efficiency |
77~90% |
76~88% |
75~84% |
72~82% |
68~82% |
64~75% |
62~72% |
60~71% |
Our Company
Application area
WP series worm gear speed reducer
It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.
Packing&Transportion
PACKING AND TRANSPORTION
●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets and wooden pallets according to customer needs.
●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
●Receiving and after-sales service: After receiving the goods, pleaClose up of shear pin which will shear in half if the implement is subject to sufficient resistance Shear pin: the shear pin shaft I use for the chipper/shredder. The driven end yoke is actually two pieces with a shear pin or bolt that holds the two pieces as one during operation. Should the equipment encounter a sudden stop the pin will take the shock and “shear off” preventing any driveline damage. se check whether they are in good condition. We will provide customers with perfect after-sales service.
FAQ
Q1: Are you a trading company or a manufacturer ?
A: We are a manufacturer in ZJ Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.
Q2: How we select models and specifications?
A: According to the specific details of the demands from the part of enquiry, we will recommend the products’ models upon synthesizing the factors of field of products usage, power, torque arm and ratio…
Q3: How is your price? Can you offer any discount?
A: Our prices are always competEPG is willing to cooperate sincerely and develop commonly with friends!itive. If the customer can place a large order, we surely will allow discount.
Q4: How long should I wait for the feedback after I send the enquiry?
A4: We will reply as soon as possible, 12 hours at most.
Q5: What is your product warranty period?
A: We have the certifications of ISO9001,CE, SGS.
Q6: What industries are your gearboxes being used?
A: Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment and so on.
